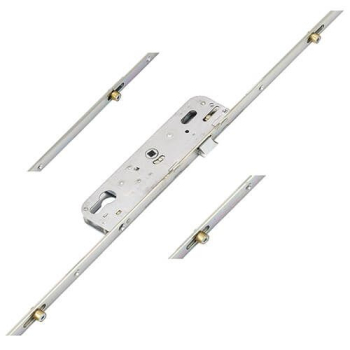

GU Ferco 4 Roller Latch Multipoint Door Mechanism

GU Ferco 4 Roller Latch Multipoint Door Mechanism

Stock Code: G1376522
In Stock
£68.23 (inc VAT)
Quantity: - +

Description

This old style GU Ferco multipoint door lock mechanism with latch only is easily identifiable with its 4 rollers and 70 mm lock centres. It is single spindle and isoperated by lift lever.  Depending on the date of manufacture, to reverse the latch either push it in to reveal a screw either side of the case before undoing the screw to remove the latch, reverse and reinsert or push a small flat bladed screwdriver in the small slot on the side of the case marked R/L, then push upwards to release the latch, reverse and reinsert.
Features include:
*  Backset: 28mm
*  Centres: 70mm
*  Euro profile lock case
*  Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock
*  7mm Spindle
*  16mm Faceplate
*  Single Spindle
*  Latch Only
*  Case height: 198mm
*  Case depth: Backset + 16mm
*  Overall length: 2200mm
*  Distance between outer rollers: 1405mm
*  Distance between inner rollers: 446mm

Length2200mm
Lock Centres70mm
Backset28mm
